Sliding Rail Kit

Expand Learning with Upscaling Dobot Sliding Rail Kit

An operating range of one additional meter opens up extra opportunities for extensive scaling. With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to perform large-scale tasks, such as long-distance picking and placing, a more extensive range of writing, drawing, or laser engraving.

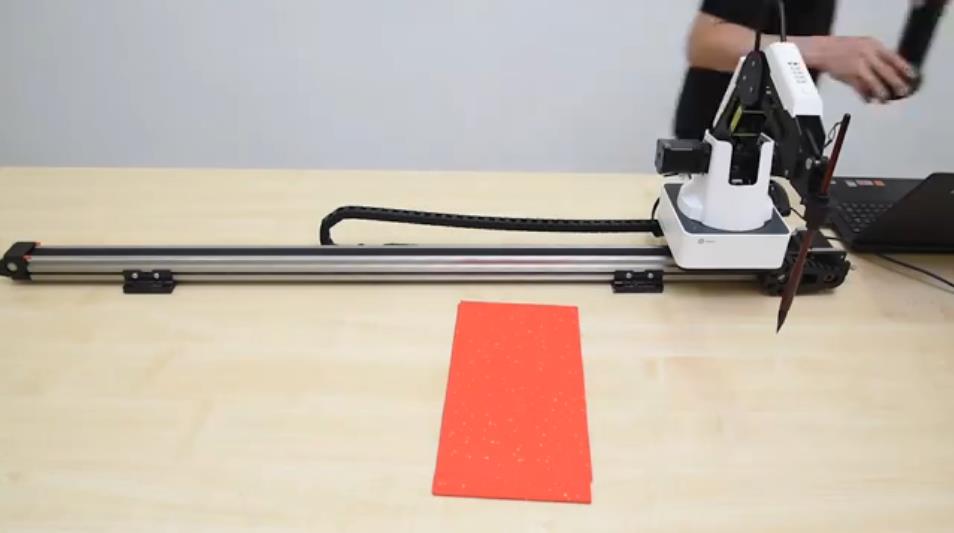

Accurate Performance of Sliding Rail

The high-precision industrial linear rail ensures the robot runs very smoothly and coherently.

The accurate operation of the sliding rail provides an innovative learning approach for scaling rich features and multiple applications.

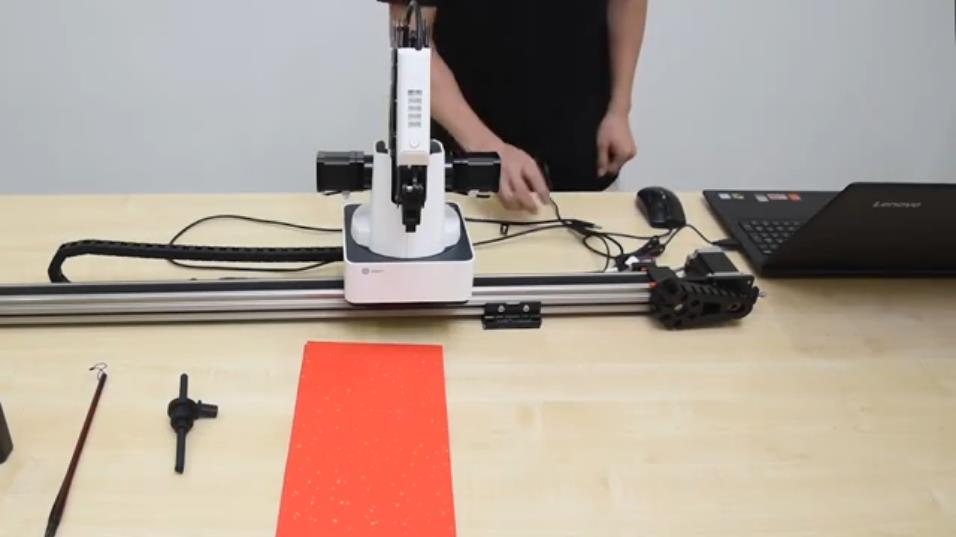

Diverse Tool Kit

The tool kit contains five different L-shaped screwdrivers, including 1.5 mm, 2 mm, 2.5 mm, 3 mm, and 4 mm. A complete set of hex screwdrivers makes it simple and easy to install.

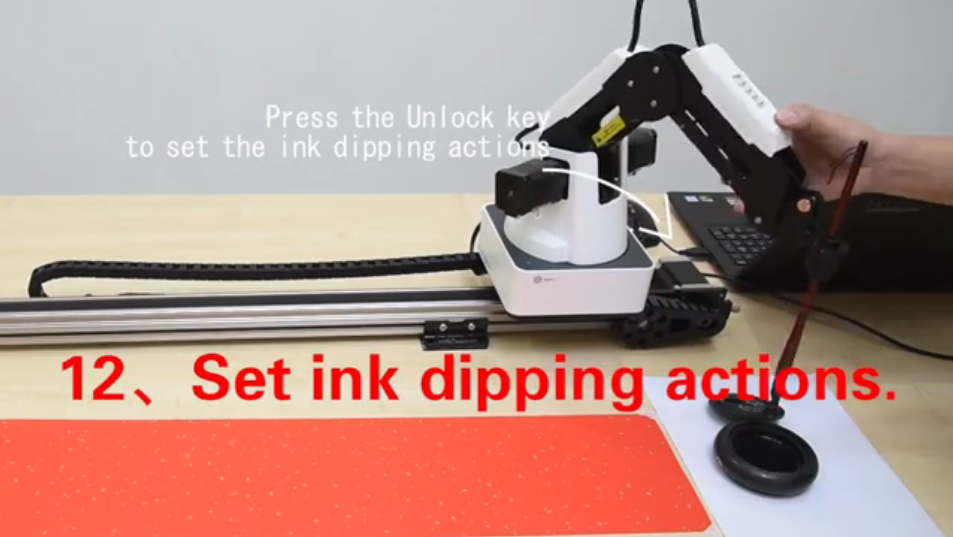

Safety Wire Set

With a drag-chain cable carrier containing and protecting the cable, you can have a smooth user experience while all the wires are in good order.

Contactez-nous

Des questions ? Nous sommes là pour vous aider !

Nos experts sont prêts à vous aider à planifier votre chemin vers le succès de l'automatisation.
Ils peuvent répondre à toutes vos questions concernant Dobot, y compris:

√ Informations sur notre portefeuille de produits et nos prix

√ Solutions personnalisées adaptées aux besoins de votre entreprise

√ Politique de partenariat avec les distributeurs et plus encore…

Remplissez simplement le formulaire ci-contre ou envoyez-nous un e-mail à sales@dobot-robots.com.

Specifications
Payload	5 kg
Effective Travel Distance	1000 mm
Maximum Speed	150 mm/s
Maximum Acceleration	150 mm/s²
Repeat positioning accuracy	0.01 mm
Absolute positioning accuracy	0.25 mm
Net Weight	4.7 KG
Weight (including packing)	7.23 KG
Dimension(Lenth × Width × Height)	1320 mm × 120 mm × 55 mm

Shipping List

The package include:Sliding Rall, Tool Kit, Wire Set, Attachment and Assembly instructions. We don't cover the customs tax

What should I do if the linear rail is moving erratically?

If you cannot control the motion of the linear rail when both the linear rail...

What should I do if the homing position of the linear rail is abnormal?

If the linear rail is in the position as shown in the following picture...

The drawing function is not working as expected?

When the PLT file is made and imported to the software, drawing...
